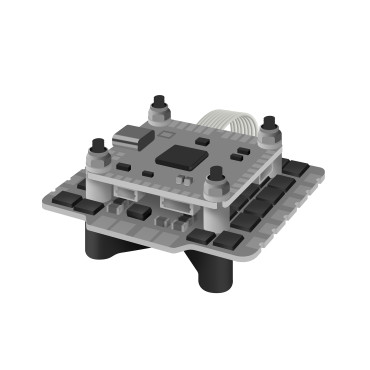

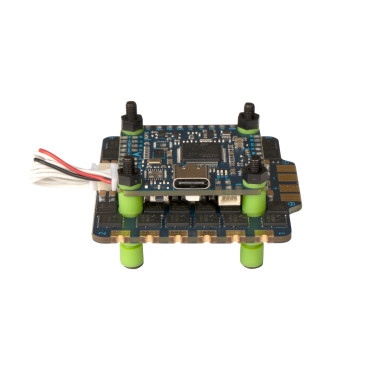

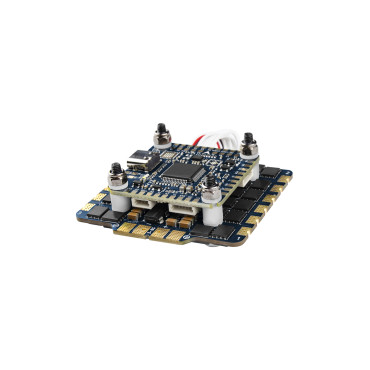

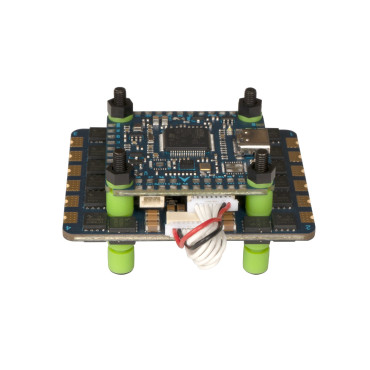

Stack Pilotix F405 V3 ICM42688 AM32 80A CZ

The Pilotix F405 V3 ICM42688 AM32 80A CZ Stack is a high-performance, EU-made flight control system designed for demanding FPV and professional drone builds. Combining the precise control of the F405 V3 flight controller with the powerful 80A AM32 4-in-1 ESC, this stack delivers exceptional stability, responsiveness, and durability. Engineered for both freestyle and long-range setups, it ensures smooth flight behavior and consistent performance across 3S–8S LiPo systems.

Features:
- Produced in the European Union, ensuring premium quality and reliability.
- Integrated 32-bit architecture for ultra-responsive and efficient flight performance.
- High-precision ICM42688 gyro and SPL06B barometer provide accurate motion and altitude data.
- Supports Betaflight 4.5.0 and ArduPilot, offering flexibility for various flight applications.
- Dual BEC outputs (5V & 9V) ensure clean, stable power for all peripherals.
- AM32 firmware ESC with real-time telemetry, current, and temperature monitoring.
- Supports 3S–8S LiPo batteries, providing wide voltage compatibility.
- Dual-camera input switching and extensive connectivity via 5 UARTs.

FC Specification:
FC Model: Pilotix F405 V3 ICM42688 CZ
Maximum Frequency: 168 MHz
MCU: STM32F405RGT6
Gyroscope: ICM42688
Barometer: SPL06B
Firmware: Betaflight 4.5.0 (support ArduPilot)
Telemetry: Support
OSD: Yes
Blackbox: Built-in 16MB
UART: x5ch
Motor Outputs: x8ch
Additional Pinout: Sbus, x1 Led, x1 Bz, RSSI, I2C-SDA SCL, VTX, VCC

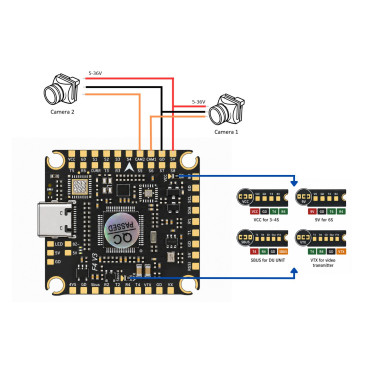

Camera Pinout: x2 (Dual Camera Inputs switch)
BEC: 5V/2.5A, 9V/2A
USB: Type-C
Weight: 9.6g
External Dimensions: 36x36x7mm
Mounting: 30.5x30.5mm

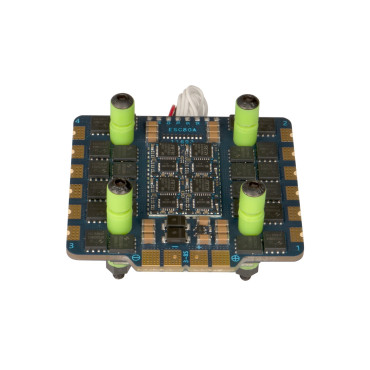

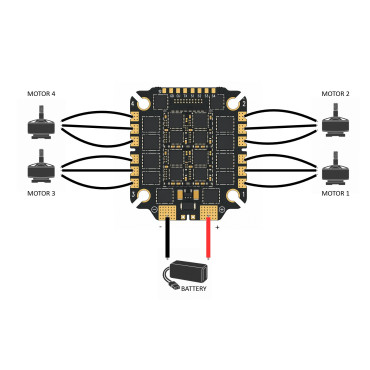

ESC Specifications:
ESC Model: Pilotix ESC AM32 80A 4in1
ESC Firmware: AM32 2.16
Continuous Current: 80Ax4
Burst Peak Current: 100Ax4
Input Signal: Dshot300, Dshot600, PWM, Bi-directional Dshot
Telemetry: Support
Current Meter: Yes
Temperature sensor: Yes
Input Voltage: 8 - 36V (3 - 8S LiPo)
Battery Input Pads: Dual
Battery connector: XT90
ESC to the FC cable: SH1.0 (8Pin)
Weight: 33g
External Dimensions: 55x52mm
Mounting: M3 30.5x30.5mm

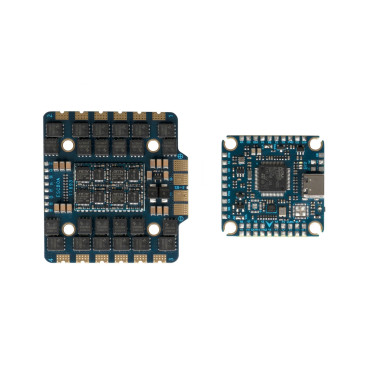

Package includes:
1x FC Pilotix F405 V3 ICM42688 CZ
1x ESC Pilotix AM32 80A 4in1 CZ
2x Capacitors 35V 1000μF
1x 12 AVG cable with connector XT90
