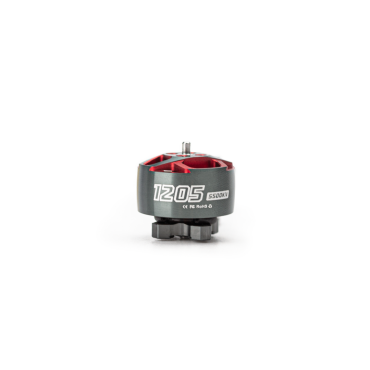

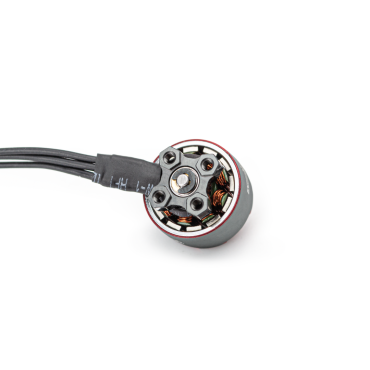

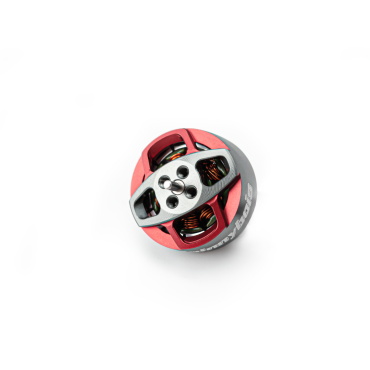

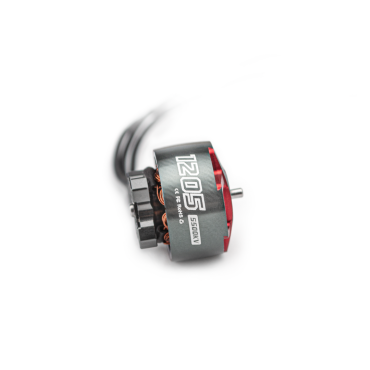

Motor Pilotix 1205 5500KV

Pilotix Motor 1205 5500KV is a high-performance brushless motor developed for micro FPV drones, combining cutting-edge materials and precision engineering. Designed by Pilotix, this motor ensures reliable power delivery, exceptional efficiency, and smooth throttle response. Its compact size and lightweight construction make it an ideal choice for drones with 2 to 3 inch propellers, delivering strong thrust without sacrificing control or flight time.

Specifications:

Model: 1205-5500kv
KV: 5500KV
Magnet: N52H
Rotor material: 7075
Bearing type: NMB
Configuration: 9N12P
Dimension: 16.72 x 13.83 mm
Shaft Diameter: 1.5mm
Shaft Protruding Length: 2mm
Propeller: 2-3 Inch
Mounting holes: 9 x 9mm
Lead: 22AWG 100mm
ESC: 20A
Input: 16.8V (4S Lipo)
Winding: Single-strand copper winding

Package includes:
1 x Motor Pilotix 1205 5500KV
