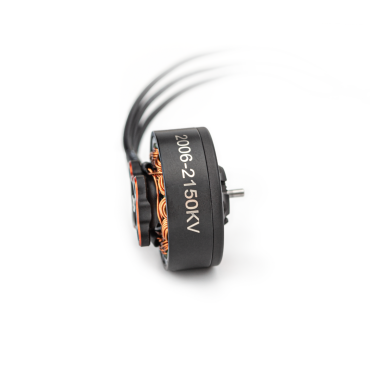

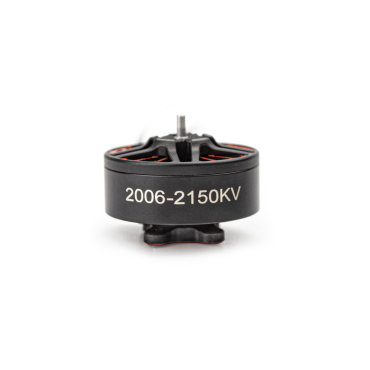

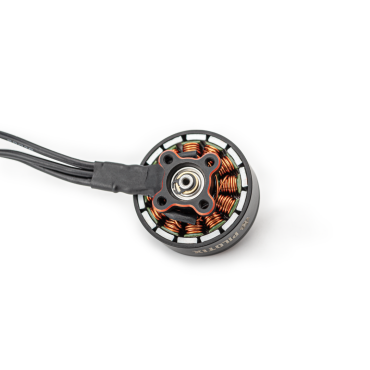

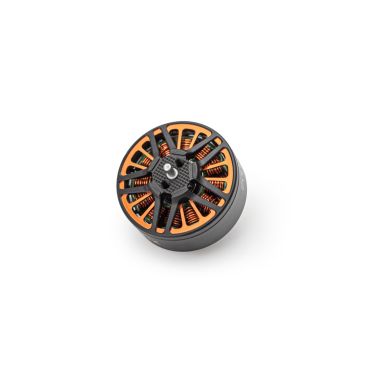

Motor Pilotix 2006 2150KV

Pilotix Motor 2006 2150KV is built for 3.5-inch drones that require stable performance on a 6S power setup. The motor provides efficient power delivery with reduced heat generation thanks to its 20mm stator and low internal resistance. It maintains precise operation under load, supports high current draw, and is dynamically balanced to minimize vibrations — making it a solid choice for responsive and controlled flight.

Specifications:

Model: Pilotix 2006-2150KV
KV: 2150KV
Internal Resistance: 83mΩ
Stator Diameter: 20mm
Stator Height: 6mm
No. of Stator Slots: 12
No. of Stator Poles: 14
Dynamic balance: ≤10mg
NO-Load Current: 1A
Maximum Current: 21.81A
Maximum Power: 523.44W
Overall Dimension: 25.6xL19mm
Shaft Diameter: 1.5xL3.5mm
Propeller size: 3.5 inch
Lead Wire Size: 22AWG*L100mm
ESC: 30A
Rated Voltage: 25.2V (6S)

Package includes:
1 x Motor Pilotix 2006 2150KV
