FPV Kit Holybro X500 V2 kit Pixhawk 6C PM02 M10 GPS 433MHZ Radio

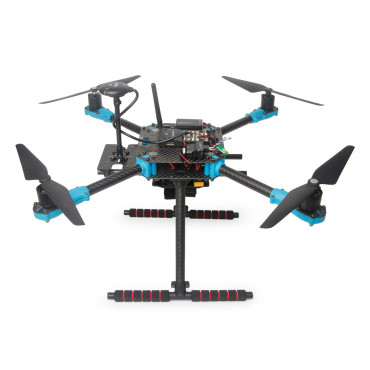

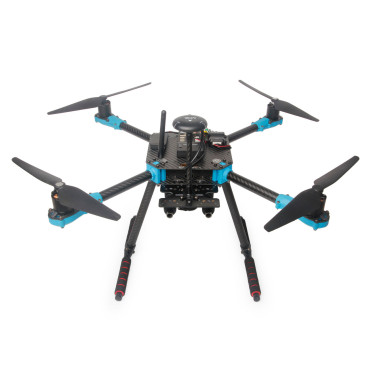

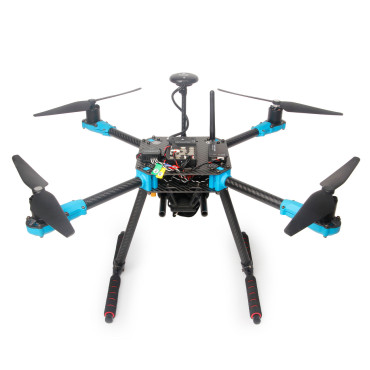

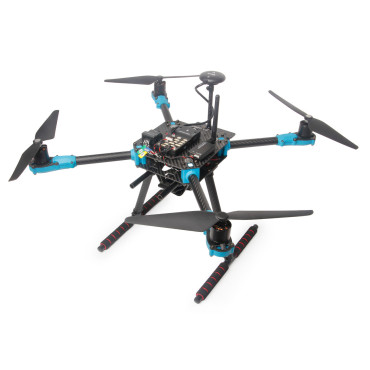

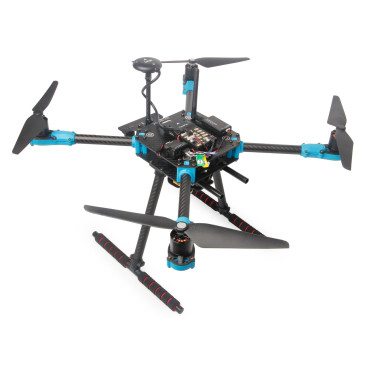

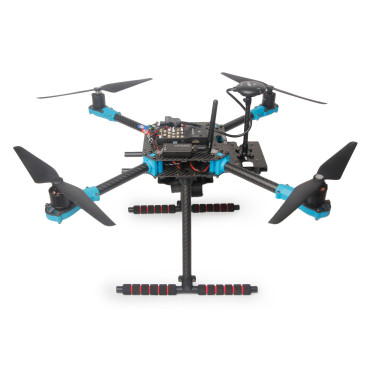

The Holybro X500 V2 Kit is a professional-grade, ready-to-fly drone development platform designed for engineers, researchers, and FPV enthusiasts working with PX4 or ArduPilot. This modular quadcopter combines a high-precision Pixhawk 6C flight controller, M10 GPS, and 433 MHz telemetry radio with a robust carbon-fiber frame, ensuring both performance and reliability for aerial robotics, mapping, and autonomous flight projects.

With its tool-free, solder-free assembly, integrated power management, and clean cable routing, the X500 V2 offers a smooth setup experience and exceptional expandability — making it an ideal choice for rapid prototyping, education, and research applications.

Features:
- Modular plug-and-play design: All major electronic components, including ESCs, motors, and flight controller connections, are pre-wired using reliable connectors — eliminating the need for soldering.
- High-performance carbon fiber frame: Rigid yet lightweight construction provides vibration damping, structural strength, and long-term durability.
- Powerful and efficient propulsion system: The included 2216 KV920 motors and 1045 propellers deliver stable lift and precise control, optimized for 4S LiPo batteries.
- Advanced navigation system: The M10 GPS module with integrated compass ensures accurate positioning and fast satellite lock, supporting both PX4 and ArduPilot environments.
- Reliable data link: The SiK telemetry radio (433 MHz) provides stable two-way communication for telemetry, mission uploads, and real-time monitoring in the field.
- Smart power management: The PM02 V3 power module provides reliable voltage and current sensing, supporting up to 12S input with clean power delivery to sensitive electronics.
- Open-source ecosystem compatibility: Fully compatible with PX4, ArduPilot, QGroundControl, and MAVLink, enabling a vast range of mission planning and analysis tools.
- Educational and research-friendly: Ideal for labs, universities, and R&D teams exploring autonomous flight, SLAM, or AI-based navigation.

Item includes:
30125 ARF Kit Holybro X500 V2 Kits
11054 FC Holybro Pixhawk 6C
17012 Holybro SiK Telemetry Radio V3 - 100mW 433MHz
12040 GPS module Holybro M10 GPS Module-Standard
15010 Power module Holybro PM02 V3-12S

Specifications:
Frame Wheelbase: 500 mm
Frame Material: Carbon fiber plates and arms
Top/Bottom Plate Thickness: 2 mm
Vertical Clearance (between plates): 28 mm
Landing Gear Height: 215 mm
Motor Mount Pattern: 16x16 mm / 19x19 mm

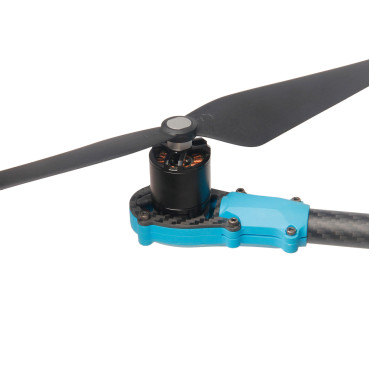

Motor Type: Holybro 2216 KV920 brushless motors (×4)
Propellers: 1045 carbon-reinforced composite (6 pcs)
ESCs: BLHeli S 20A ESCs (×4) with XT30 connectors
Power Module: PM02 V3 (12S support, current & voltage sensing)

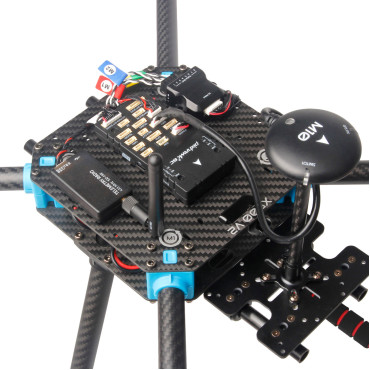

Flight Controller: Pixhawk 6C (H7 dual-core MCU, IMU redundancy, vibration-damped mount)
GPS Module: Holybro M10 GPS with integrated compass
Telemetry Radio: SiK 433 MHz V3 Telemetry Module (pair)
Recommended Battery: 4S LiPo 3000–5000 mAh (20C minimum)
Empty Weight (without battery): ≈ 610 g
Typical Flight Time: ≈ 18 min (hover, no payload, 4S 5000 mAh)
Payload Capacity: Up to 1 kg (typical operation at ~70 % throttle)
Operating Voltage: 14.8 V (4S) nominal
Connector Type: XT60 (main) + XT30 (auxiliary)
Software Compatibility: PX4 / ArduPilot / QGroundControl
Frame Kit Weight (without electronics): ≈ 365 g

Package includes:
1x FPV Kit Holybro X500 V2 kit Pixhawk 6C PM02 M10 GPS 433MHZ Radio
