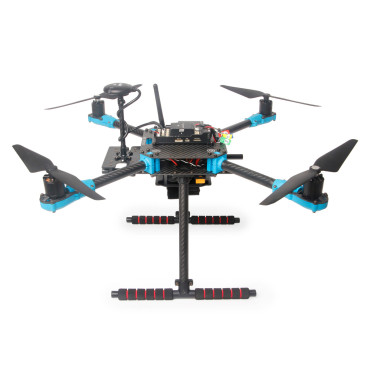

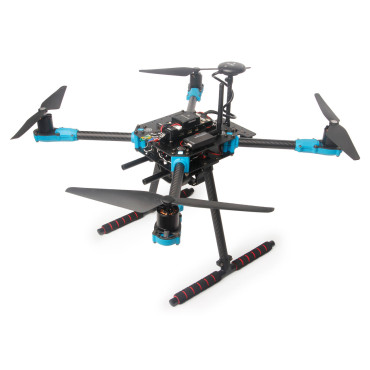

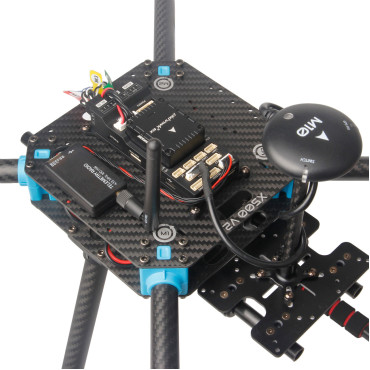

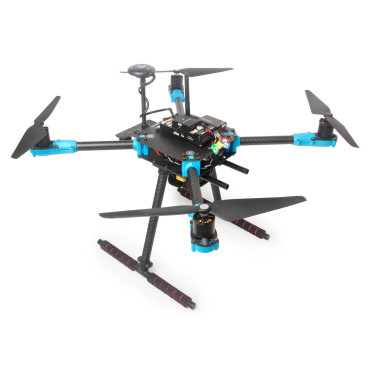

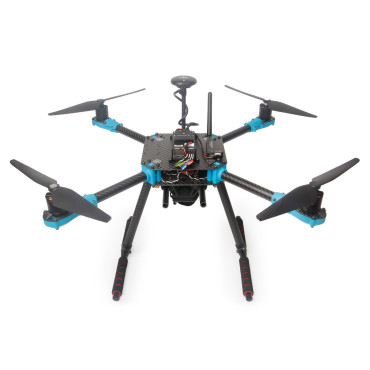

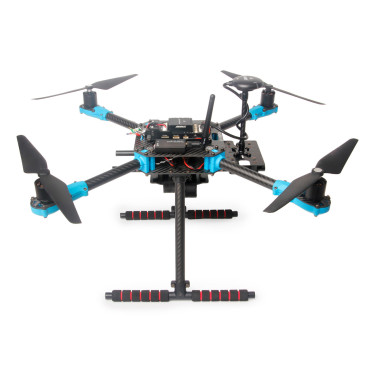

FPV Kit Holybro X500 V2 kit Pixhawk 6X Standard 433MHZ Radio

The Holybro X500 V2 Kit (Pixhawk 6X + 433 MHz) is a high-performance development-grade quadcopter kit built for PX4/ArduPilot systems, integrating the powerful Pixhawk 6X controller with an onboard M10 GPS and 433 MHz telemetry link. The kit comes ready to assemble, with pre-installed motors, ESCs, and a carbon-fiber X500 V2 frame, giving a balance of agility, modularity, and reliability for research, mapping, and autonomous flight projects.

Features:
- Plug-and-play setup: Motors and ESCs come pre-soldered and connectorized for a quick build, minimizing wiring errors and assembly time.
- Rigid carbon-fiber structure: The frame is built with twill carbon plates and reinforced nylon connectors, delivering strength with minimal weight.
- Advanced flight control: Pixhawk 6X offers triple-redundant IMUs, high processing power, and strong sensor fusion for stable, autonomous flight.
- Reliable GNSS and telemetry: The kit includes an M10 GPS module for fast satellite lock and stability, paired with a SiK telemetry radio operating at 433 MHz for robust ground link.
- Scalable and payload-capable: The frame includes rail mounts and clearance to add cameras, companion computers, or sensors, making the platform versatile for experiments or payload missions.
- Firmware and ecosystem support: Compatible with PX4, ArduPilot, QGroundControl, and MAVLink tools, enabling wide support for mission planning, telemetry, and loggin

Item includes:
30125 ARF Kit Holybro X500 V2 Kits
18117 Pixhawk Standart Baseboard V2A
11073 FC Holybro Pixhawk 6X
17012 Holybro SiK Telemetry Radio V3 - 100mW 433MHz
12040 GPS module Holybro M10 GPS Module-Standard
15011 Power module Holybro PM02D-12S HV

Specifications:
Wheelbase: 500 mm
Frame body size: 144x144 mm, plate thickness 2 mm
Distance between top & bottom plates: 28 mm
Landing gear height: 215 mm
Empty weight (frame + electronics, no battery): ~ 610 g
Propellers: 1045 (6 pieces)
Motors: Holybro 2216 KV920 (4 pcs)
ESCs: BLHeli S 20A (4 pcs) with XT30 connectors
Flight Controller: Pixhawk 6X (Standard base)
Power Module: PM02D (the HV/D variant)
GPS: M10 GPS module
Telemetry: SiK Telemetry Radio V3, 433 MHz
Compatible battery: 4S LiPo, 3000–5000 mAh recommended
Typical flight time (hover, no payload): ~ 18 minutes (with 5000 mAh)
Payload capacity: ~1 kg (depending on battery and throttle usage)
Mounting for companion computers: Yes — spacing and holes for Raspberry Pi, Jetson, etc.

Package includes:
1x FPV Kit Holybro X500 V2 kit Pixhawk 6X Standard 433MHZ Radio
