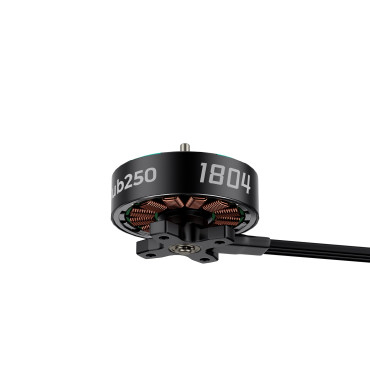

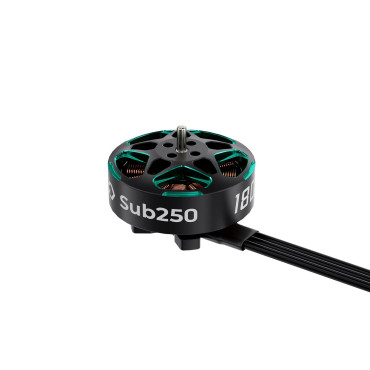

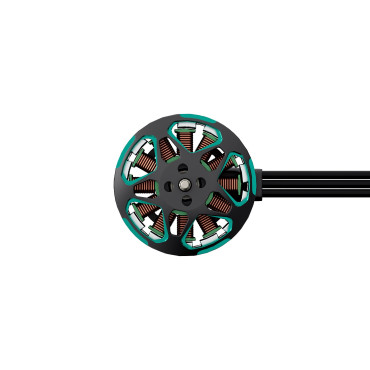

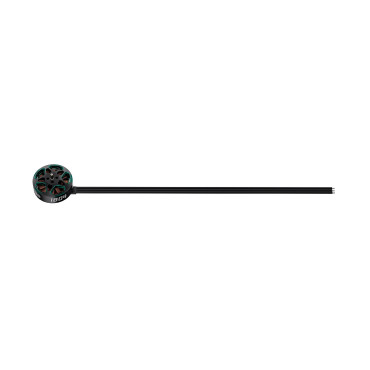

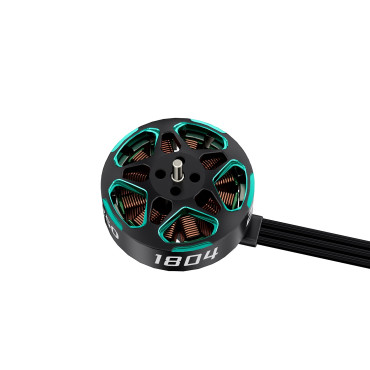

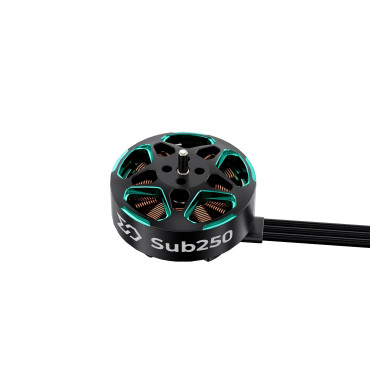

Motor Sub250 1804 3450KV

The Sub250 1804‑3450KV brushless motor is a high‑performance, lightweight powerplant designed for agility and responsiveness in Sub250 FPV builds. With an optimized magnetic circuit and robust construction, it delivers strong torque and dynamic throttle response across a wide voltage range. Its compact size makes it ideal for 3.5‑inch and 5‑inch FPV drones seeking lively flight characteristics.

Features:
- Very lightweight design that improves overall drone performance and agility
- High‑strength magnetic steel and optimized magnetic circuit for efficient power delivery
- Strong torque and fast response for crisp throttle control
- Durable motor structure built to handle aggressive flying
- Versatile compatibility with multiple FPV frame sizes including 3.5″ and 5″

Specifications:
Item: Sub250 1804-3450KV
Configuration: 12N14P
Magnet: N52H ARC
Stator Diameter: 18mm
Stator Height: 4mm
Shaft Diameter: Φ2mm(in)Φ1.5mm(out)
Size: Φ22.74mmx13.2mm
Lead Wires: 24#AWG 150mm
No. of Cells (LiPo) : 2-4S
Max Continuous Power(W) (3S): 404.8W
Max Current (5S): 25.3A
Mounting Holes: 12x12mm (M2 Screw)
Color: Dark + Green
Weight: 13.2g (13CM Wire）

Package includes:
1x Sub250 1804 Motor
5x M2x6mm Screw
5x M2x8mm Screw
