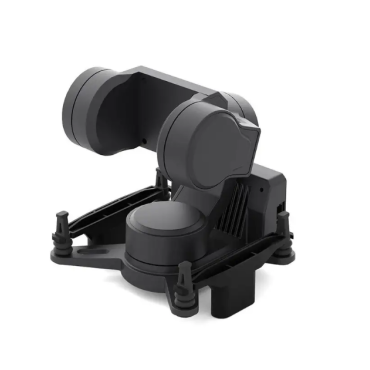

FPV Gimbal CaddxFPV GM3 V2-20

CaddxFPV GM3 V2-20 is a high-performance 3-axis mechanical stabilization gimbal designed for professional FPV platforms. Compatible with Walksnail Avatar and Ascent 19mm / 20mm cameras, it delivers ultra-precise stabilization, extended rotation range, and full head-tracking support for immersive and cinematic flight control.

Features:
- Advanced 3-axis mechanical stabilization for smooth and vibration-free footage
- Ultra-high stabilization precision for professional-level image control
- Extended yaw, pitch, and roll rotation range for dynamic shooting angles
- High-speed response suitable for aggressive FPV maneuvers
- Supports head-tracking via UART and PPM protocols
- Multiple control interfaces including UART, S.BUS, CRSF, Mavlink, and PWM
- Compatible with INAV, PX4, and ArduPilot firmware systems
- Automatic detection of upright and inverted installation
- Priority-based control system for stable signal management
- Supports firmware upgrade and channel configuration via GimBalSetting software
- Secure mounting with damping ball vibration isolation system
- Designed for custom vehicle integration with user-defined mounting holes

Specifications:
Model: GM3 V2-20
Camera Compatibility: Avatar/Ascent Series 19/20mm Camera
Stabilization Accuracy: ±0.005°
Maximum Controllable Speed: ±1500°/s
Controllable Rotation Range:
Yaw：±160°
Pitch: ±120°
Roll：±60°
Control Method: Uart/ S.bus/ Crsf/ Mavlink/ PWM
Head Tracking Control: Supports
Static Power: 1.6W
Stall Power: 18W
Dimensions: 61.5x47x46mm
Weight: 48g

Package includes:
1x FPV Gimbal GM3 V2-20
1x Mounting bracket
Damping balls
Connection cables
