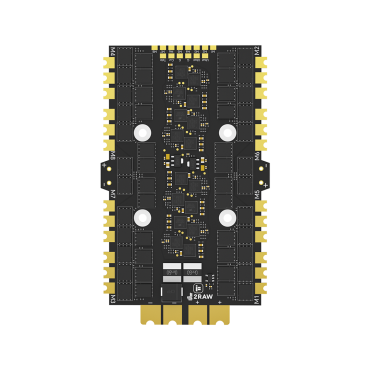

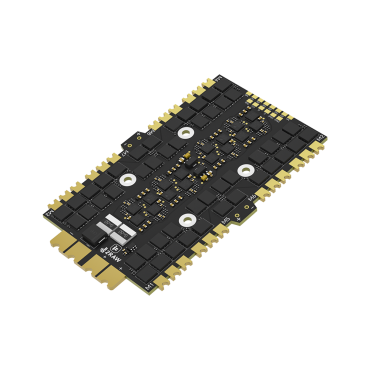

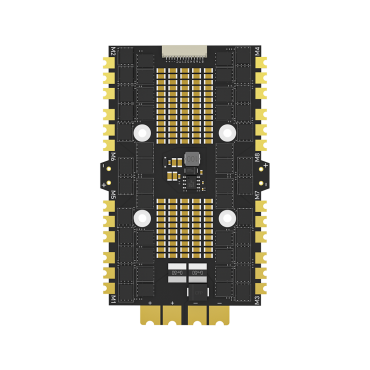

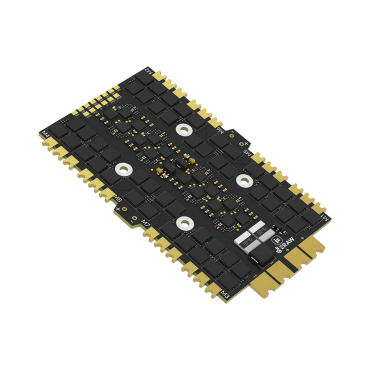

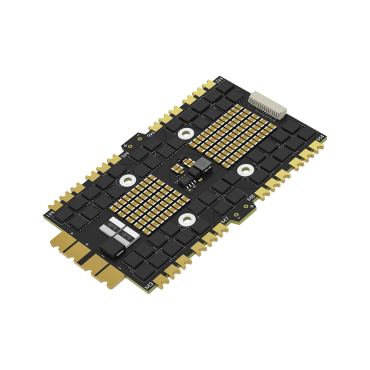

ESC iFlight Thunder 80A 8-IN-1

The 8-in-1 8s ESC is meticulously designed for drones configured with x8 motor setups, prioritizing pristine electrical performance. This ESC boasts an impressive array of onboard ceramic capacitors, enhanced by two dedicated slots for external 50V capacitors. It features enlarged solder pads to facilitate easy wiring, while ensuring excellent pad contact. The PCB is thickened and engineered with larger-than-standard traces to improve conductivity, which promotes seamless performance. Additionally, an 8in1 plug supports direct plug-and-play connectivity with the 2RAW H7 FC, although solder pad options are also available. With the capability to handle 2-8s power sources, this ESC is an exemplary choice for virtually any high-performance x8 cinelifter build, distinguished by its exceptional components.

Specifications:

Input Voltage: 2-8S
Max. Continuous Current: 80A
Max. Burst Current: 100A
MCU: G071
BEC: No
Firmware: Blheli_32 32.9
Current Sensor: Yes
Current rate: 250
Telemetry: Supported
Target: IFLIGHT_BLITZ_G2
Mounting Dimensions: 30.5*30.5 φ4
Dimensions: 100*60.5mm±1
Weight: 61g±1
Protocol: Supports DShot DShot150/300/600/MultiShot/ OneShot, etc

Package includes:

1 x 2RAW Thunder 8-IN-1 8S ESC (G2）
1 x Wiring set
