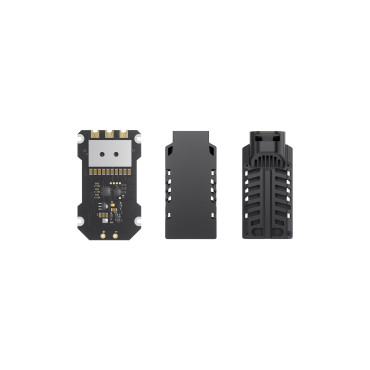

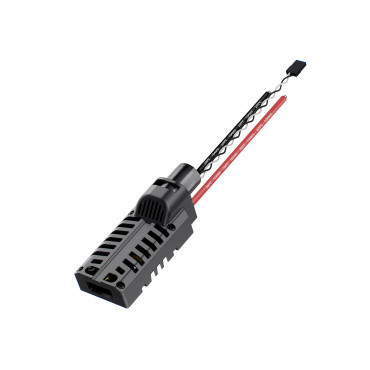

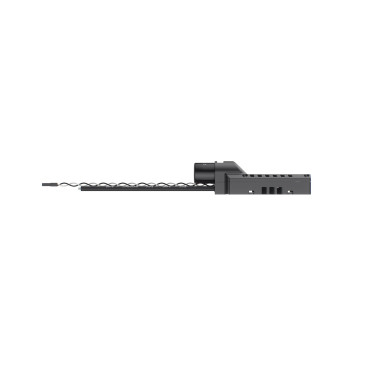

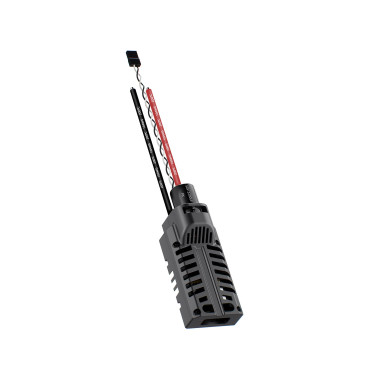

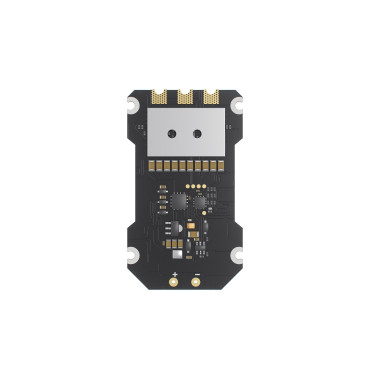

ESC GEPRC TAKER S100 8S BLS 100A

The GEPRC TAKER S100 8S BLS 100A ESC is a high-power electronic speed controller designed for demanding FPV and UAV applications. Supporting up to 8S LiPo input and equipped with high-quality MOSFETs and an integrated heat-sink structure, it delivers stable and reliable performance under extreme current loads. Compatibility with BLHeli_S and BlueJay firmware provides flexible tuning options for different flight styles.

Features:
- High-current capability for powerful FPV and long-range drone setups
- Integrated MOS heat-sink structure for efficient cooling and stable operation
- Wide voltage support ensures consistent performance with high-power batteries
- Custom hollow heat-dissipating case enhances airflow and thermal efficiency
- Supports BLHeli_S and BlueJay firmware for versatile configuration
- Optimized for smooth and responsive digital throttle control

Specification:
Input Voltage: 3-8S Lipo
Ammeter: Not Supported
Continuous Current: 100A
Burst Current: 105A(5 seconds）
Protocols Supported: Dshot 150/300/600
Dimension: 32.5x55mm
Mounting Holes: 29.6x48.5mm
Weight: 13.7g

Package Include:
1x TAKER S100 8S BLS 100A ESC
1x 50V 2200μF Capacitor
1x 10AWG (3.4mm²) Red Silicone Wire (240mm)
1x 10AWG (3.4mm²) Black Silicone Wire (240mm)
1x 2.54mm Dupont Line – 2P Single-end Socket Connector Cable (150mm)
