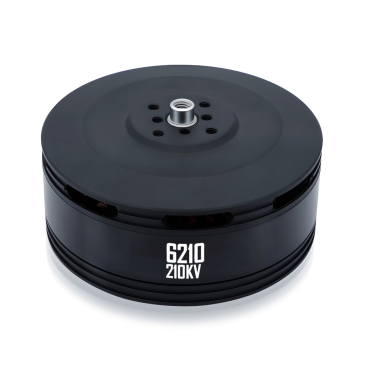

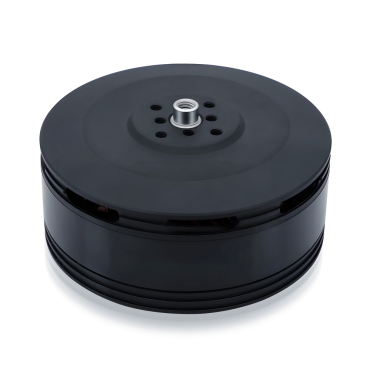

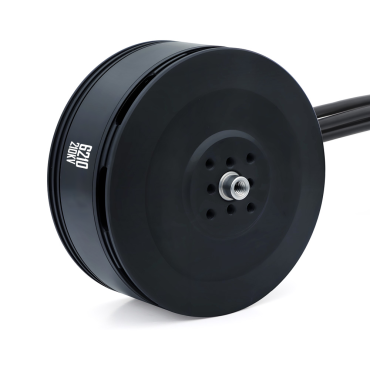

Motor Pilotix 6210 210Kv

Pilotix 6210 210KV is a high-torque brushless motor designed for large multirotors, heavy-lift drones, and professional aerial platforms. It delivers stable performance, smooth operation, and high thrust efficiency under heavy loads.

Features:
- Powerful and efficient design optimized for 6–8S LiPo configurations.
- Smooth startup and reliable operation with low vibration and noise.
- High-quality bearings and balanced rotor ensure extended lifespan.
- Long silicone wires (14AWG, 670mm) for easy installation on large frames.
- Precision-machined aluminum housing provides superior heat dissipation.

Specifications:
Model: Pilotix 6210 210KV
KV Value: 210 KV
Interphase Resistance: 42.5 mΩ
Shaft Diameter: 6 mm
Motor Weight (including wires): 331 g
Maximum Power: 1825.4 W
Maximum Thrust: 6630 g (8S)
Slot/Pole: 24N28P
Motor Dimensions: Φ68.8x36mm
Motor Silicone Wire: 14 AWG, 670mm
No-Load Current (at 7.4V): 0.49 A
Maximum Current: 54.72 A
Motor Mounting Dimensions: 4xM4 / Φ25mm
Propeller Mounting Dimensions: 8xM3 / Φ12–18mm

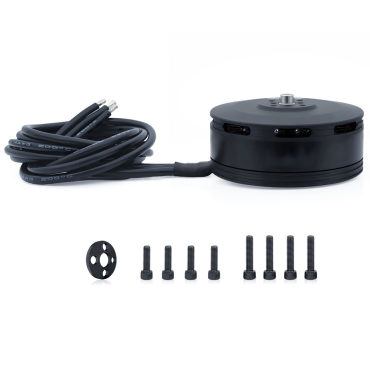

Package includes:
1x Pilotix 6210 210KV brushless motor
1x Screw set for installation
