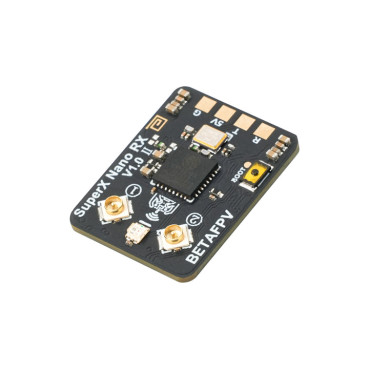

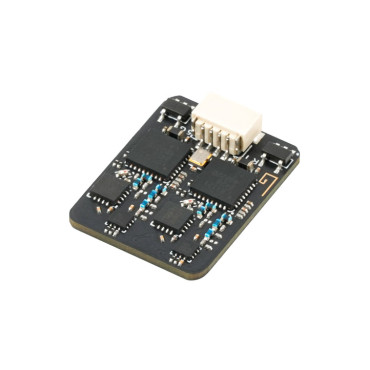

Receiver BETAFPV SuperX ELRS Gemini Xross Nano (ELRS 2.4G + 868M)

A compact dual-band ELRS receiver with Gemini Xross technology for reliable long-range control. ExpressLRS Gemini revolutionizes RC control by leveraging true diversity hardware to simultaneously transmit across 2.4GHz and 868MHz frequencies. Unlike conventional systems, Gemini utilizes dual independent transmit/receive chains, delivering superior link quality (LQ) that thrives in challenging environments like race courses or urban areas.

Powered by dual LR1121 chips from Semtech, the SuperX Nano Receiver delivers uncompromising signal reliability with three modes: 900M Gemini (long-range penetration), 2.4G Gemini (ultra-low latency), and 900M+2.4G GemX (simultaneous operation). The included dual-band T antennas eliminate frequency-switching hassles, while advanced diversity processing ensures rock-solid stability in RF-challenged environments. Built for mission-critical applications, it's the ultimate solution for competitive racers, long-range explorers, and professional aerial photographers who demand zero-compromise performance.


Features:
- Semtech LR1121 RF chips + Espressif ESP32-C3
- LoRa and blistering 1000Hz FSK modes
- Supports 900M Gemini, 2.4G Gemini, 900M+2.4G GemX
- Dual-band mastery for RF-challenged environments
- Works with Micro/Micro V2/Nano V2/SuperG TX modules
- Compact and lightweight

Specifications:

MCU: ESP32-C3
Telemetry Power: 20dBm
Input Voltage: 5V
Protocols: CRSF, SBUS, SUMD, DJI RS2 Pro, MAVLink
RF Chip: Dual LR1121
Reception Mode: Diversity/Gemini
Frequency Band: 868M+2.4G
Antenna Connector: IPEX MHF1 x2

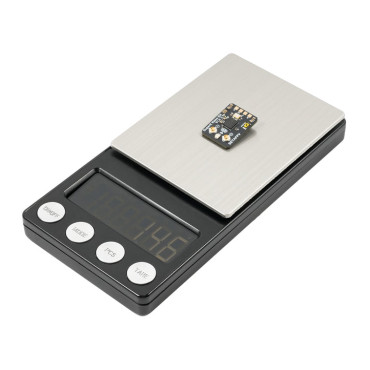

Weight: 1.45g
Dimensions: 16.3 x 21.4mm
LUA Name: BFPV SuperX Nan
Recommended: 5'' + drones (freestyle, photography, long-range)

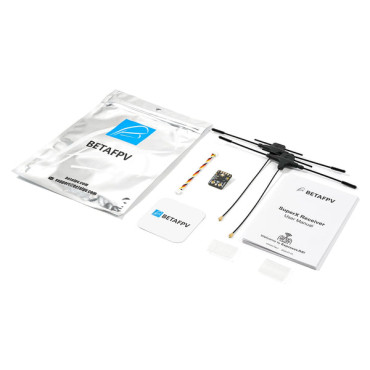

Package includes:
1x SuperX Nano Receiver (ELRS 2.4G + 868M)

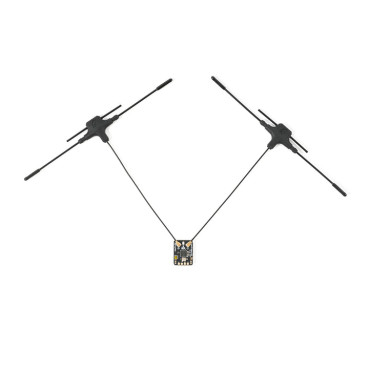

2x Dual-band T Antenna
1x SH1.0 Connector (Double Ended)
2x Heat Shrink Tubing
1x User Manual
