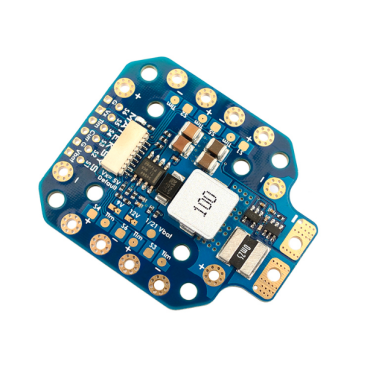

Power Distribution Board MATEKSYS PDB-HEX

The MATEKSYS PDB-HEX is a hexagonal power distribution board optimized for hexacopters and quads, offering robust current sensing and adjustable BEC to deliver reliable power and telemetry in compact FPV setups.

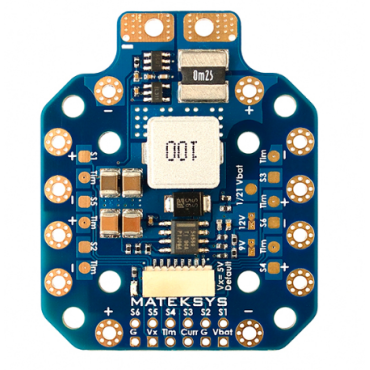

Features:
- Supports wide input range (2–12S LiPo, 6–60 V DC) with built-in current sensing.
- Distributes power to six ESCs with telemetry signal support via integrated pads.
- Includes protective features: overcurrent protection, short-circuit tolerance, and self-recovery.
- Compact mounting design.

Specifications:
Input Voltage: 6–60 V (2–12S LiPo)
Current Handling: PDB/current sense resistor: 140 A continuous, 264 A burst. Each ESC pad: 60 A cont., 100 A burst.
Current Sensor: 264 A range, 3.3 V ADC output; scaling: 125 (INAV/Betaflight), 80 (ArduPilot).
BEC Output (Vx):
-5 V default (5 A cont.)

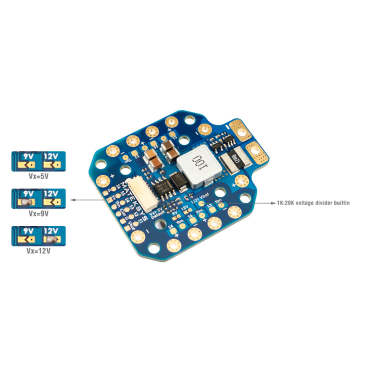

-9 V or 12 V via jumper (4 A cont., up to 5 A max)
-Short-circuit tolerant for 1 second, overcurrent protection, auto-recovery.
Voltage Divider: 1 kΩ : 20 kΩ resistors, output = 1/21 of VBAT.

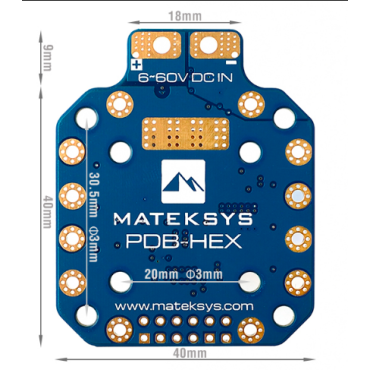

Physical: Mounting holes at 30.5x30.5 mm & 20x20 mm (Ø3 mm)
Dimensions 49x40x6 mm
Weight:12 g

Package includes:
1x MATEKSYS PDB-HEX PDB with BEC & current sensor
1x Rubycon ZLJ 63 V 390 µF capacitor
1x JST-SH1.0 8-pin cable (5 cm)
2x JST-SH1.0 8-pin connectors
