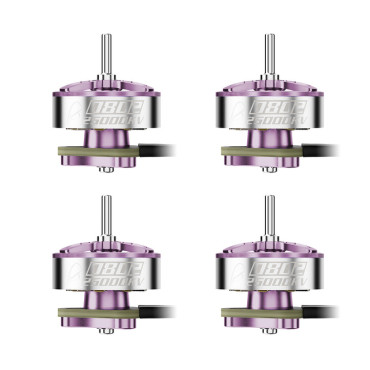

Motor BetaFPV 0802 Racing 25000KV Purple (4PCS)

The BetaFPV 0802 Racing 25000KV motor is a high-performance brushless motor designed for fast, technical FPV racing with the Air75 II platform. Featuring an industry-first ultra-thin stator core, it delivers improved efficiency, reduced heat buildup, and stable power output during aggressive race flights. Precision-tuned for the Racing version, this motor provides sharp throttle response and high RPM performance while maintaining lightweight efficiency and control.

Features:
- Industry-First 0.10mm Stator Core: Maximizes efficiency and reduces heat by minimizing magnetic losses, delivering a proven 0.1-0.2g/W improvement.
- Engineered for high RPM and instant response on technical race courses.
- Enhanced Crash Durability: Built with an upgraded rotor housing and shaft design to withstand hard impacts and extend motor life.
- Optimized magnetic circuit and winding for stable high-RPM performance
- Lightweight construction ideal for competitive micro FPV racing builds

Specifications:
KV: 25000KV
Maximum Power: 31.15W
Maximum Current: 8.15A
Bearing Type: Brass bushings

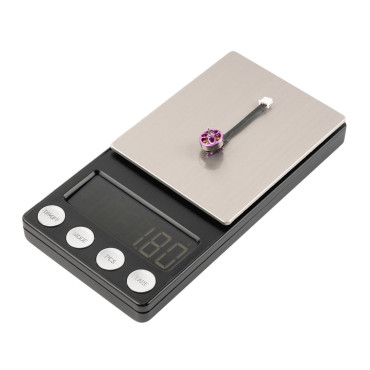

Weight: 1.88g
Rated Voltage: 4.2V (1S)
Shaft Diameter: ø1.0mm
Shaft Length: 4mm
Wire Gauge: 30AWG
Wire Length: 35mm
Connector: JST1.25 3Pin
Mounting Hole Size: 3xM1.4 EQS Ø6.6mm

Package includes:
4x Motor BetaFPV 0802 Racing 25000KV Purple
12x M1.4x3 screws
