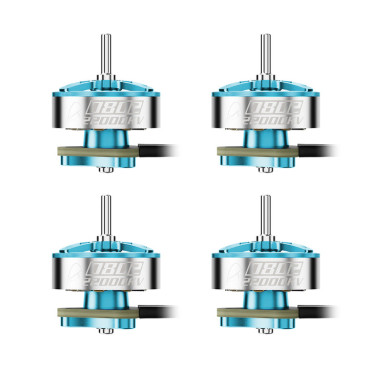

Motor BetaFPV 0802 Freestyle 22000KV Blue (4PCS)

The BetaFPV 0802 Freestyle 22000KV motor is a finely tuned brushless motor developed for pilots who value smooth control, efficiency, and cinematic flight characteristics. It utilizes an industry-first ultra-thin stator core that minimizes magnetic losses, improves energy conversion, and helps maintain lower operating temperatures during longer freestyle sessions. Precision-optimized for the Freestyle version, this motor delivers strong and consistent low-throttle torque, allowing for precise altitude control and fluid transitions between maneuvers.

Features:
- Industry-First 0.10mm Stator Core: Maximizes efficiency and reduces heat by minimizing magnetic losses, delivering a proven 0.1-0.2g/W improvement.
- Optimized for smooth, efficient flying with superior low-throttle torque.
- Enhanced Crash Durability: Built with an upgraded rotor housing and shaft design to withstand hard impacts and extend motor life.
- Optimized magnetic circuit and winding for stable high-RPM performance
- Lightweight construction ideal for competitive micro FPV racing builds

Specifications:
KV: 22000KV
Maximum Power: 22.73W
Maximum Current: 5.9A
Bearing Type: Brass bushings

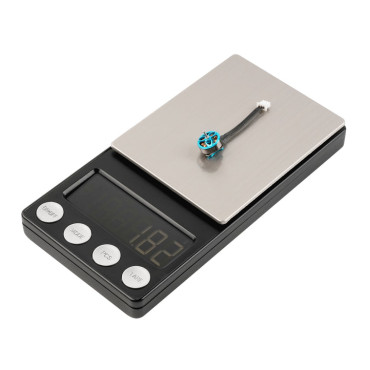

Weight: 1.88g
Rated Voltage: 4.2V (1S)
Shaft Diameter: ø1.0mm
Shaft Length: 4mm
Wire Gauge: 30AWG
Wire Length: 35mm
Connector: JST1.25 3Pin
Mounting Hole Size: 3xM1.4 EQS Ø6.6mm

Package includes:
4x Motor BetaFPV 0802 Freestyle 22000KV Blue
12x M1.4x3 screws
