Frame GEPRC GEP-DS16

The GEP-DS16 frame is innovatively designed to support the DJI O4 Air Unit Pro VTX. It features an integrated top cover with a four-point damping ball structure, ensuring stable footage. With only 6 screws to remove, the AIO and VTX module can be quickly detached, making inspection and maintenance more convenient. The fixed XT30 power port enhances both aesthetics and practicality. Its compact 1.6-inch body allows agile flights through narrow spaces with ease.

Features:

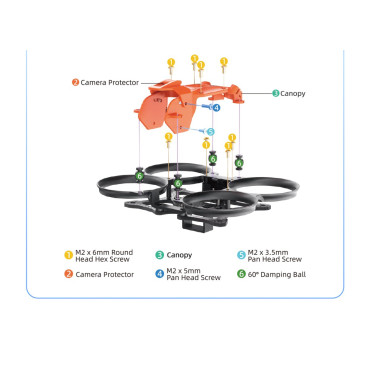

- Integrated top cover with four-point damping ball structure, reducing vibrations and ensuring stable aerial footage
- Quick-release structure, only six screws are needed to detach the transmission module
- Compatible with DJI O4 Air Unit Pro, featuring a larger CMOS for clearer and sharper imaging
- New lightweight injection-molded design, combining reduced weight with durability

Specifications:
Model: GEP-DS16 Frame
Dimensions: 100x100x58mm
Wheelbase: 91mm
Carbon Plate Thickness: 2.5mm
FC Mounting: 25.5x25.5mm
VTX Mounting: 25.5x25.5mm
Motor Mounting: 3-M1.4-φ6.6mm
Lens Mounting Width: 20mm
Battery Slot Dimensions: 13x17x10mm
Colors: Orange / Grey
Propellers: 1.6 inch
Weight: 31.3g±5

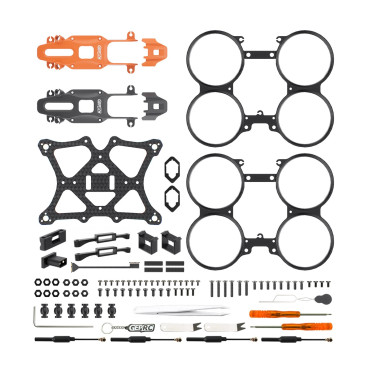

Package includes:
2x Propeller Guards (Black)
1x Main Carbon Plate (Black)
2x Canopy (Orange / Gray)
2x Camera Protectors (Orange / Gray)
1x Screw Pack
2x VTX Antennas
1x 1.5mm L-shaped Hex Wrench
1x Torx Screwdriver
