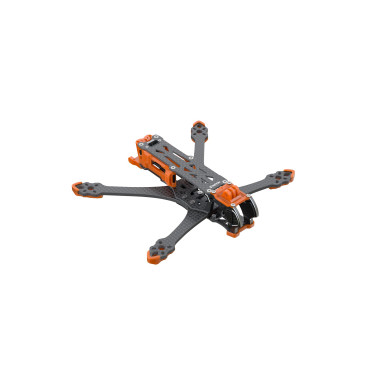

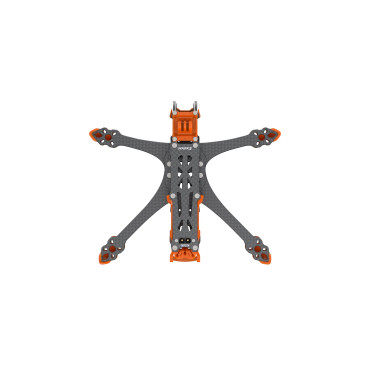

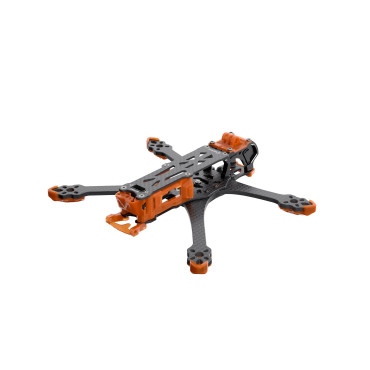

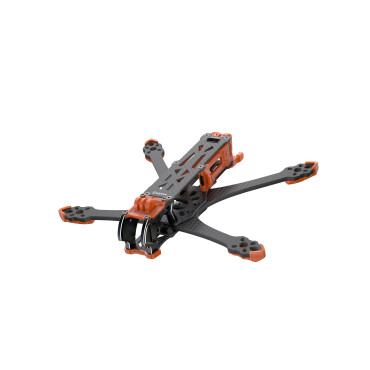

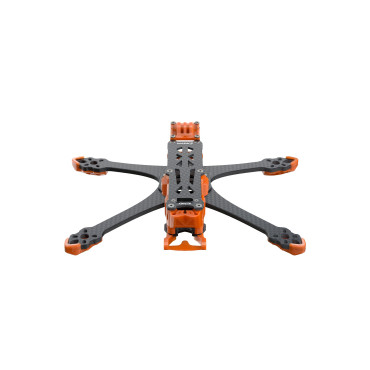

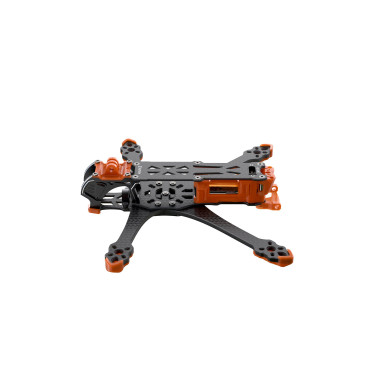

Frame GEPRC GEP-MK5 O4 Pro DC Orange

The GEPRC GEP-MK5 O4 Pro DC frame is purpose-built for the DJI O4 Air Unit Pro, delivering improved camera protection, better stability, and enhanced vibration resistance. With a redesigned camera mounting system and upgraded silicone dampers, this frame ensures smoother footage and a more stable flight experience in any environment.

Made from high-quality 3K carbon fiber, the MK5 O4 Pro is strong, lightweight, and durable. Its DC (DeadCat) layout provides a wide, unobstructed camera view with no propellers in the shot—perfect for cinematic flying. The frame includes quick-release arms for fast swaps using only two screws, plus dual TPU camera mounts that support all major action cameras.

Features:
- Built for DJI O4 Air Unit Pro – optimized layout and revised camera mount for perfect compatibility
- DC (DeadCat) Design – wide layout keeps props out of the camera view
- Dual TPU Camera Mounts – supports all popular action cameras
- Shock-Absorbing Silicone – greatly reduces vibrations for smoother footage
- Quick-Release Arms – only two screws per arm for easy replacement
- High-Strength 3K Carbon Fiber – lighter, stronger, and more durable
- Multiple Mounting Patterns – supports a wide range of FCs, VTX units, and motors
- Perfect for 5-Inch Builds – ideal for cinematic and freestyle setups

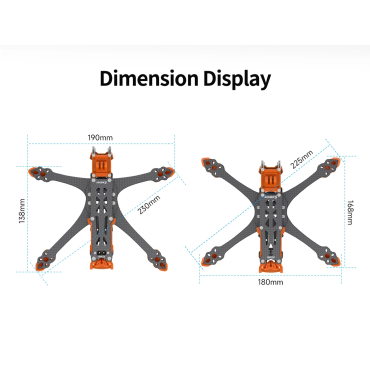

Specifications:
Model: GEP-MK5 O4 Pro DC
Wheelbase: 230mm
Weight: 197g ±10g
Color: Coral Orange
Top Plate Thickness: 2.5mm
Bottom Plate Thickness: 2.5mm
Arm Thickness: 5.0mm
FC Mounting: 30.5x30.5mm
VTX Mounting: 20x20 / 25.5x25.5 / 30.5x30.5 mm
Motor Mounting: 16x16 / 19x19 mm
Camera Mounting Width: 20 mm
Recommended Prop Size: 5-inch

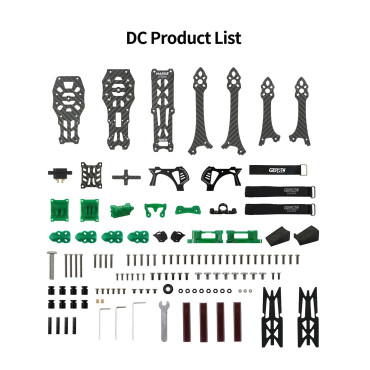

Package Includes:
1x GEP-MK5 O4 Pro Frame
1x 15x250 mm heavy-duty Velcro strap
2x Battery anti-slip pads
1x 3D-printed parts pack
2x 20x250 mm rubber anti-slip straps
1x L-shaped screwdriver 1.5 mm
1x L-shaped screwdriver 2 mm
1x L-shaped screwdriver 3 mm
1x M8 wrench
1x Screw pack
