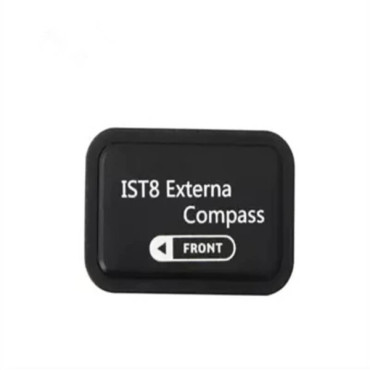

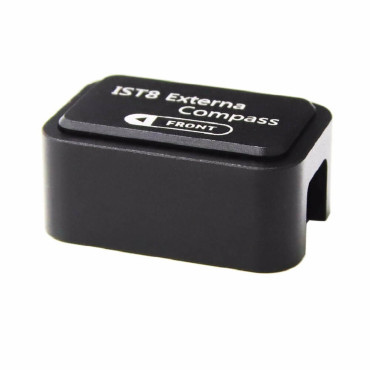

Magnetometer CUAV IST8 Compass V5+ version

The CUAV IST8 is a high-precision external compass module based on the iSentek IST8310 3×3 mm LGA geomagnetic sensor. Designed for seamless integration with CUAV V5+ and Pixhawk flight controllers running PX4 or ArduPilot, it delivers stable heading data in demanding environments. Its compact 23×14×9 mm form factor and 5 g weight make it ideal for space-constrained mounts. Operating over a wide –40 °C to +85 °C range and powered by a 5 V rail, the IST8 connects via I²C for easy setup and calibration. Enhance your autopilot’s navigation accuracy with this robust, low-noise compass module.

Specifications:

Sensor: IST8310 3×3 mm LGA geomagnetic sensor
Operating Voltage: 5 V
Interface: I²C
Operating Temperature: –40 °C to +85 °C
Dimensions: 23 × 14 × 9 mm
Weight: 5 g

Package Includes:

1 × Magnetometer CUAV IST8 Compass V5+ version
