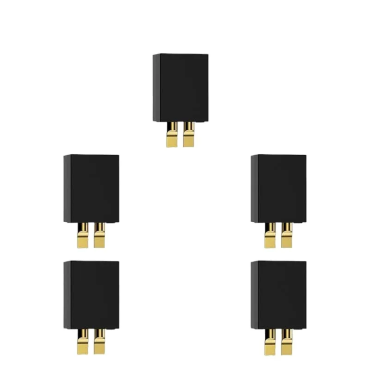

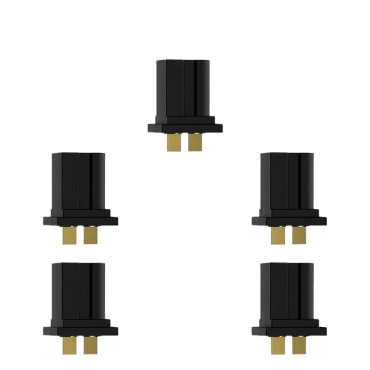

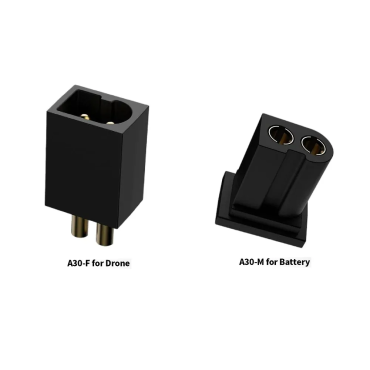

Battery Connector FLYWOO A30 Male-Female (5 pcs)

The FLYWOO A30 Battery Connector Set includes 5 male and 5 female high-current connectors, ideal for drones requiring a robust and efficient power connection. Designed to support up to 15A of continuous current and peak discharges up to 30A, these connectors significantly outperform traditional PH2.0 options. With brass-gilded metallic contacts and flame-retardant PA66 insulation, they ensure durability, low contact resistance (1.6mΩ), and safe operation in a wide temperature range from -20°C to 120°C. Perfect for battery builds, ESCs, or custom power harnesses, the A30 connector is the new standard for high-performance micro drones and RC electronics.

Specifications:

Model: A30
Standard Current: 15A
Peak Discharge Rate: 30A
Withstand Voltage: DC 500V
Contact Impedance: 1.6mΩ
Plug Color: Black
Metallic Material: Brass gilding
Insulating Material: PA66
Wire Compatibility: 20# / 22#
Operating Temperature: -20°C to 120°C
Flame Retardant Rating: UL94 V0

Package Includes:

5 × A30 Male Connectors
5 × A30 Female Connectors
