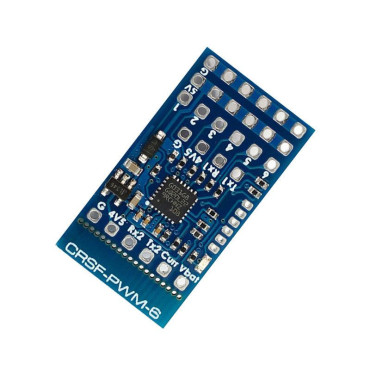

PWM Signal Converter MATEKSYS CRSF-PWM-6

The MATEKSYS CRSF-PWM-6 is a compact board that converts CRSF (Crossfire) signals to PWM outputs, ideal for fixed-wing models or gear requiring servo-ready signals from modern long-range receivers.

Features:
- Designed exclusively for CRSF protocol receivers (e.g., Crossfire, ExpressLRS).
- Delivers six PWM outputs with adjustable frequency to suit a variety of servos.
- Includes dual UART ports for connecting a receiver and GPS or firmware updates.
- Integrates battery voltage sensing and supports external current sensor telemetry.
- Automatically sets failsafe values on first signal reception and supports firmware upgrades.

Specifications:
Supports CRSF receivers across various RF bands (868 MHz, 915 MHz, 2.4 GHz)
Input voltage: 5V
Input protocol: CRSF (ELRS and Crossfire receivers)
Output protocol: 6x PWM
PWM Frequency: 50/100/160/330/400Hz (50Hz default)
UART: 2x (receiver and GPS/Settings)
Telemetry: Current, Voltage, Capacity, GPS coordinates, GPS speed, Altitude, Number of satellites
Battery sensor: 36V Max
Current sensor: 0-3.3V

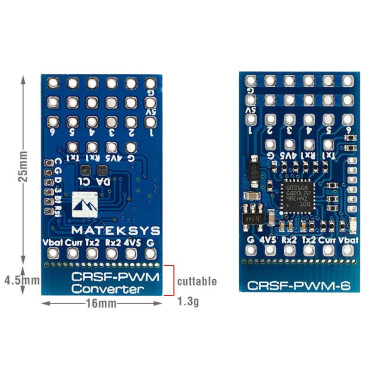

Dimensions: 25x16mm
Weight: 1.3 g

Package includes:
1x MATEKSYS CRSF-PWM-6 Converter module
1x Dupont 2.54-pin header connector
