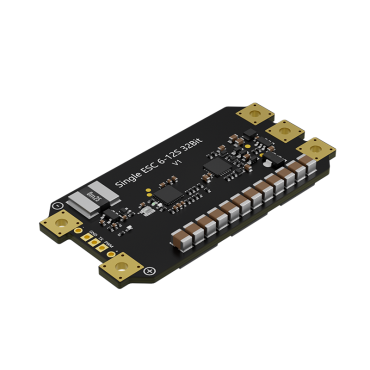

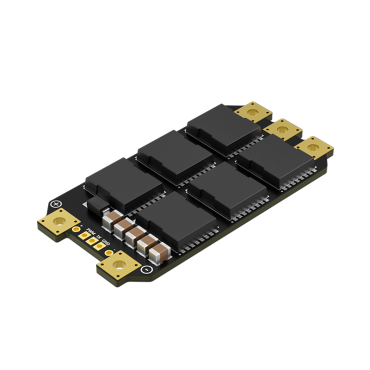

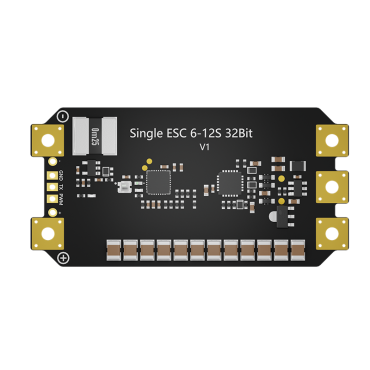

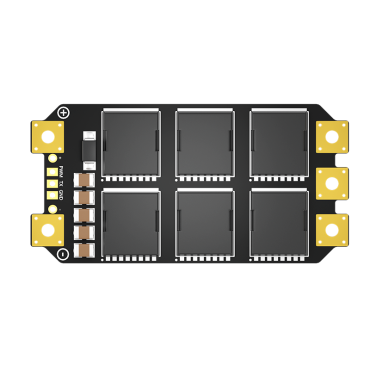

ESC Single Pilotix 12S 100A

The Pilotix 12S 100A ESC is a powerful and reliable electronic speed controller designed for demanding FPV drones and large multirotors. Built on AM32 firmware with advanced AT32F421 MCU, it ensures smooth throttle response, accurate current measurement, and stable performance for high-voltage setups.

Features:
- Supports advanced protocols including bi-directional DShot for RPM filtering
- Integrated current sensor and telemetry for real-time monitoring
- Compact and lightweight design with standardized mounting pattern
- Optimized for 6–12S LiPo batteries and large-scale FPV applications

Specification:
Rated Current: 100A
Peak Current: 120A
MCU: AT32F421G8U7
Input Signal: PWM, Bi-directionalDshot300/600
Telemetry: Support
Input Voltage: 6-12S Lipo
Firmware: AM32
On-board ammeter: Support
Mounting Hole: M3 30.5x30.5mm
Weight: 19g
Dimension: 29x58mm

Package Include:
1x 12S 100A Single ESC
2x 63V 330uF Capacitor
1x three-color silicone wire
1x Heat-shrink tube
1x 12AWG Silicone Wires (black)
1x 12AWG Silicone Wires (red)
