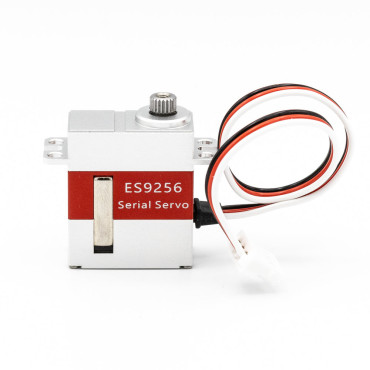

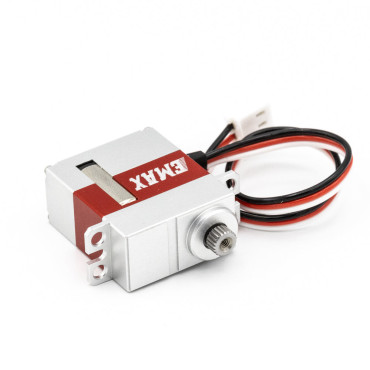

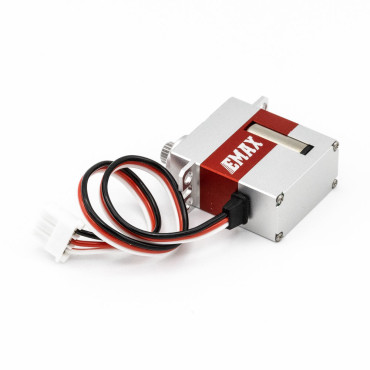

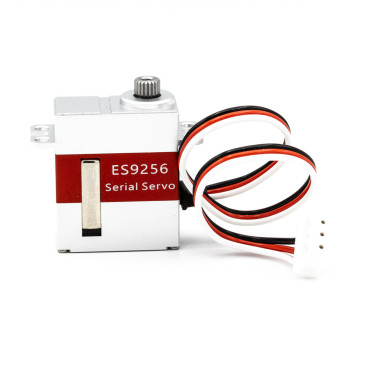

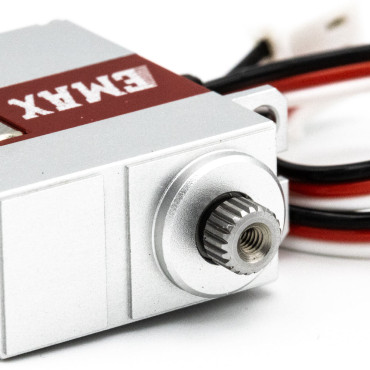

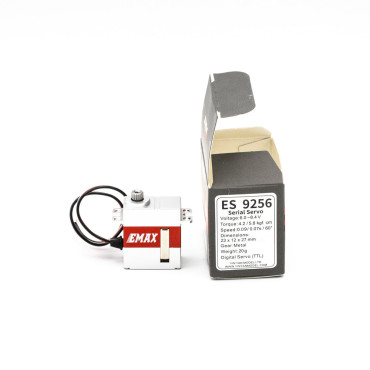

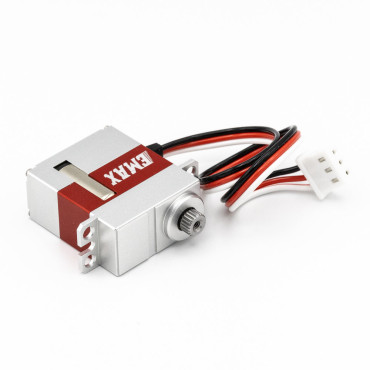

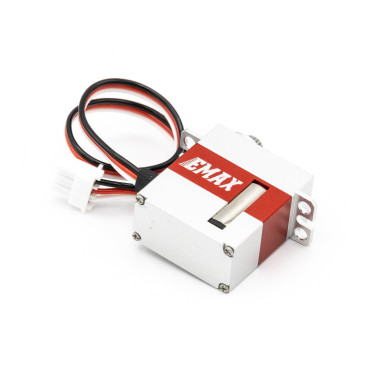

Servo EMAX ES9256HV

Servo EMAX ES9256HV – a high-voltage digital servo with a coreless motor, dual bearings, and hardened aluminum gears, delivering fast 0.07 s/60° speed and 5.8 kg·cm torque, ideal for 450-class RC helicopters.

Specification:
Type: Swash / Rotor Tail Digital Servo
Model: EMAX ES9256
Motor: 5-pole coreless
Gears: 7075 aluminum, hard-anodized
Potentiometer: High-precision NOBLE
Bearings: Dual-bearing for durability
Operating Voltage: 6.0-8.4V
STD Direction: Counter clockwise/pulse traveling 1500 to 1900usec
Stall Torque: 6.0V 4.2Kgf.cm; 8.4V 5.8Kgf.cm
Operating Speed: 6.0V 0.09 Sec/60°at no load; 8.4V 0.07 Sec/60°at no load
Plug: FUT/JR
Dimensions: 23x12x26.5mm
Weight: 20g
Compatible: 450 Helicopters

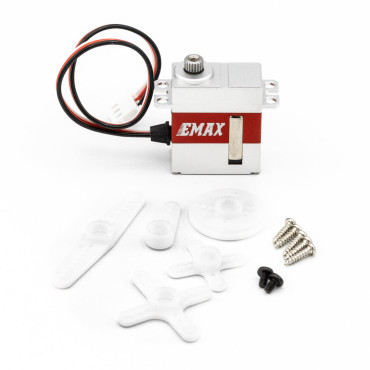

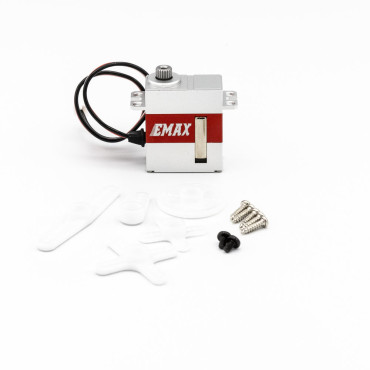

Package includes:
1 x ES9256HV Servo
1 x Servo arm
