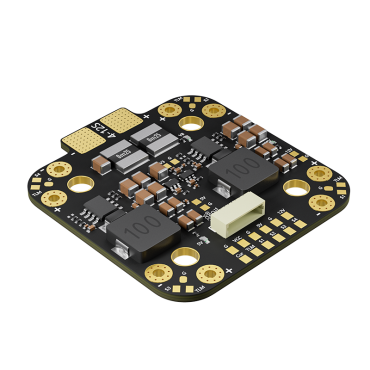

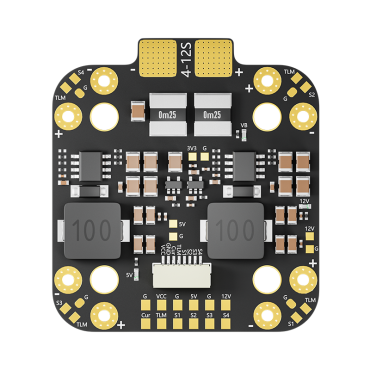

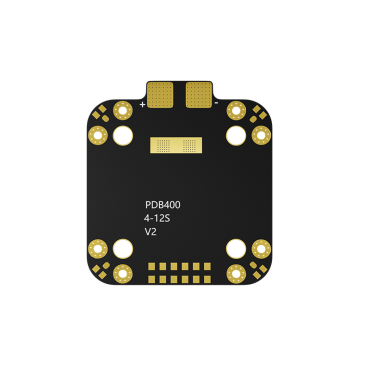

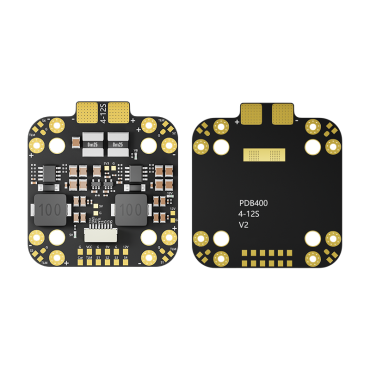

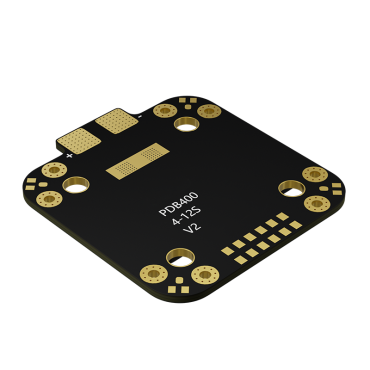

Power Distribution Board Pilotix PDB400 V2 12S

The Pilotix PDB400 V2 12S is a high-performance power distribution board designed for large FPV drones and heavy-lift multirotors. Supporting up to 12S LiPo input, it efficiently distributes high current to multiple ESCs while providing stable BEC outputs for flight controllers and peripherals. Built with reliability in mind, it includes on-board current sensing and telemetry support for precise system monitoring.

Features:
- Integrated 12V and 5V BEC outputs for accessories and flight controllers
- On-board current sensor with telemetry feedback
- Compact, durable design with standard mounting holes

Specification:
Rated Current: 100Ax4
Peak Current: 120Ax4
BEC Output: VCC,12V/4A,5V/5A
On-board ammeter: Support
Telemetry: Support
Input Voltage: 4-12S Lipo

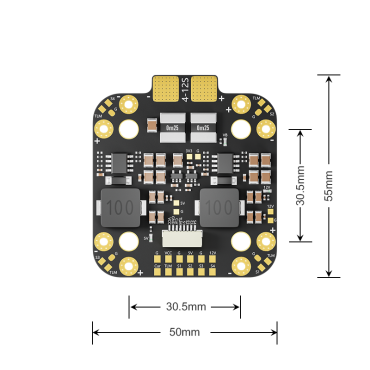

Mounting Hole: M4 30.5x30.5mm
Weight: 24g
Dimension: 50x55x5.6mm

Package includes:
1x PDB400 V2 12S
2x 63V 1000uF Capacitor
1x 8pin cable
1x XT90 power cord
4x Shock-absorbing ball
