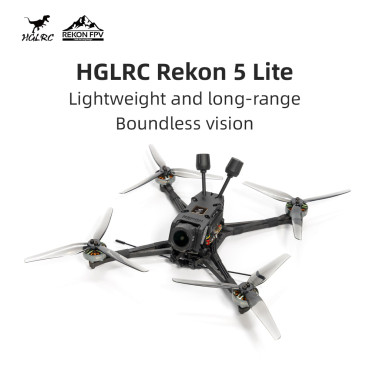

FPV drone HGLRC Rekon 5 Lite O4 Pro ELRS 2.4G

A lightweight yet powerful 5‑inch FPV drone inspired by the Dave_C mini‑long‑range concept. It offers approximately 50% more propeller area than standard 5″ quads, enabling it to carry full-size action cameras like GoPros or larger battery packs with minimal impact on performance.
Designed for endurance, efficiency, and smooth cruising flight, it delivers quiet, extended flight times of around 20–30 minutes, while remaining agile and cost-effective compared to larger 7″ drones.
Constructed with an innovative rack‑style carbon frame, featuring 10 mm aluminum chainring screws that lock front and rear arms for exceptional rigidity while minimizing weight. It includes a TPU canopy and integrated GoPro mount to safeguard the camera in case of impacts

Features:
- Rack-style carbon frame using 10 mm 7050 aluminum chainring bolts to lock together front and rear arms, achieving a rigid center while allowing lightweight carbon plate construction elsewhere
- Shock-absorbing TPU canopy with an integrated naked GoPro mount to protect the camera during crashes
- Optional arm protection bars, independent TPU mounts for GPS and buzzer, foldable T-shaped antenna mount (Black Sheep style) to avoid signal gaps during yaw maneuvers
- Flight Controller (FC): SPECTER F722 Mini (STM32F722 + MPU6000 gyro) compatible with dual-stack 20x20 mm setups
- ESC: ZEUS 28 A BLHeli S 4‑in‑1 ESC — 28 A continuous, 35 A peak current, supporting 3–6 S LiPo input
- Motors: SPECTER 2004 motors (1800 KV for 6 S or ~2600 KV for 4 S), each ~16.6 g
- VTX options: ZEUS 800 mW analog transmitter (PIT/25/100/200/400/800 mW), HGLRC Vista HD, or DJI O3 Air Unit digital system
- Camera: Caddx Ratel V2 analog FPV camera (1/1.8" 1200 TVL sensor, ~6 g) included
- Control Link: ELRS 2.4 GHz receiver module onboard for low-latency, high-refresh-rate RC link with robust range
- Includes M80 GPS mount (for GPS units such as M80), plus Soter drone buzzer mount, battery straps, and extra hardware
- Comes with Gemfan 5125 three-blade 5" propellers (4 CW + 4 CCW)

Specifications:
Frame: Rekon 5 Lite frame
Flight Control: SPECTER F722 40A 4-65 AIO
MCU: STM32F722
Gyroscope: MPU6000
Flight control firmware: HGLRCF722AIO
ESC firmware: Bluejay 0.21.0 96KHz G-H-30
VTX: DJI 04 Air Unti Pro HD
Motor: SPECTER 1804 3500KV
GPS: M100 MINI GPS
Propeller: HQ Prop T5X2X3
Wheelbase: 206mm
External size: 170x170mm
Weight: 335g (04 PRO version)

Package includes:
1x Recon 5 lite drone
4x HQ Prop T5X2X3
2x Battery strap
8x cup head hexagon socket M2X7 black nickel plated screws
1x propeller direction
1x instruction card
