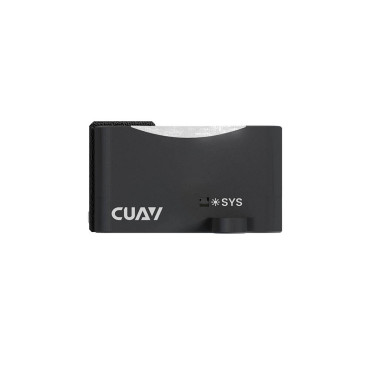

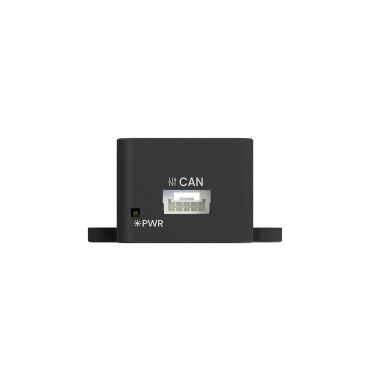

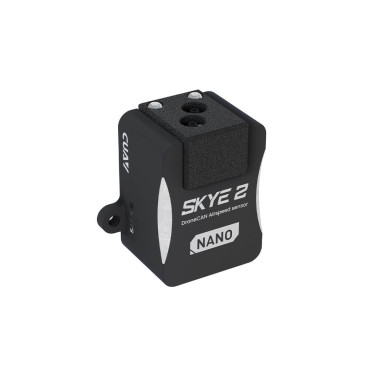

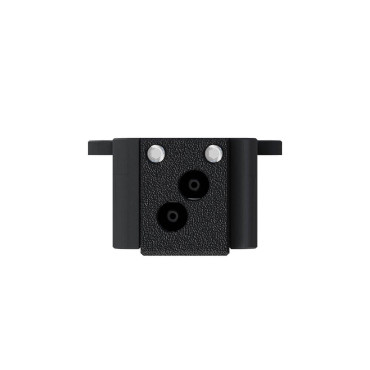

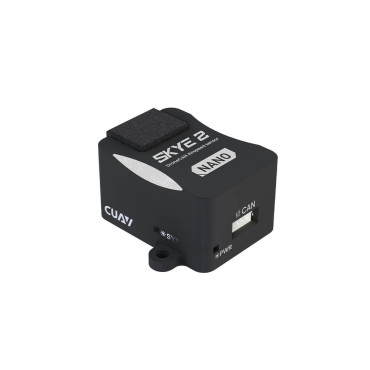

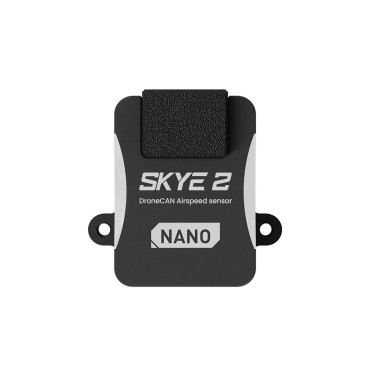

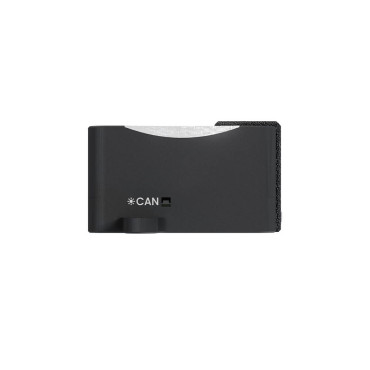

Airspeed Sensor CUAV SKYE 2 NANO

The CUAV Skye 2 Nano Airspeed Sensor delivers precise airspeed readings for fixed-wing and VTOL UAVs via a rugged DroneCAN interface. Featuring the high-performance DLVR_L10D differential pressure sensor, it measures speeds from 0 to 226.8 km/h with ±1 % accuracy. Encased in a lightweight aluminum alloy housing (32.0 × 33.4 × 18.5 mm), the Nano module integrates seamlessly with PX4 and ArduPilot (CUAV/Pixhawk) systems. Operating on 4.75–5.3 V and in –20 °C to +85 °C environments, it’s ideal for demanding flight conditions. At just 15 g, it adds minimal weight while enhancing your autopilot’s aerodynamic control and flight efficiency.

Specifications:

Sensor Element: DLVR_L10D differential pressure transducer
Airspeed Range: 0 – 226.8 km/h
Accuracy: ±1 %
Interface: DroneCAN (FD capable)
Power Input: 4.75 – 5.3 V
Current Draw: ≤20 mA (typical)
Operating Temperature: –20 °C – +85 °C
Housing Material: Aluminum alloy
Dimensions: 32.0 × 33.4 × 18.5 mm
Weight: 15 g
Compatibility: PX4, ArduPilot, CUAV and Pixhawk flight controllers

Package Includes:

1 × Airspeed Sensor CUAV SKYE 2 NANO
