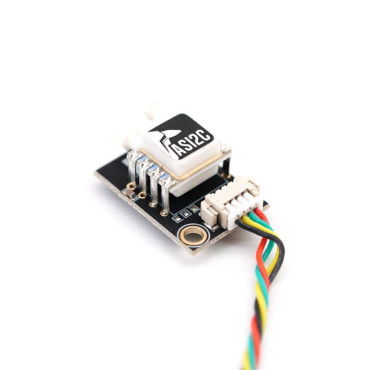

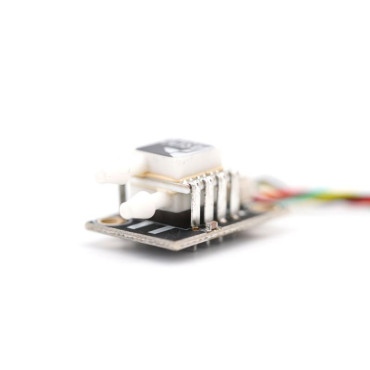

Digital AirSpeed Sensor Kit TBS ASI2C

Featuring a Measurement Specialties 4525DO sensor, with 1 psi measurement range (roughly up to 100 m/s or 360 km/h or 223 mp/h), the TBS ASI2C Digital Air Speed Sensor Kit enables a resolution of 0.84 Pa, with data delivered at 14 bits from a 24 bit delta-sigma ADC. It also measures temperature to allow calculation of true airspeed from indicated airspeed using the MS5611 static pressure sensor on Pixhawk. Not influenced by the heat of nearby processing components, it is much closer to the air temperature than with previous analog sensor setups. Supported on all Pixhawk and PX4 autopilot generation boards, this kit comes with M3/6-32 mounting holes.

Features:
- Temperature Sensing: Integrated temperature measurement enables true airspeed (TAS) calculation when used with a static pressure sensor (e.g. MS5611 on Pixhawk)
- Anti-heat design: Shielded from heat generated by nearby electronics to ensure reliable temperature readings

Specifications:
Pressure Sensor: Utilizes the Measurement Specialties MS4525DO digital sensor
Pressure Range: Up to 1 psi (~0–100m/s, ~360km/h, ~223mph)
Resolution: 0.84 Pa, yielding highly precise measurements
Heat Resistance: Shielded against heat from nearby electronics, ensuring the temperature reading is close to actual ambient air
Interface: I2C digital interface, compatible with 3.3V Pixhawk/PX4 flight controllers
Mounting: Features M3 / 6‑32 mounting holes for secure installation

Package includes:
1х TBS ASI2C Digital Air Speed Sensor Kit

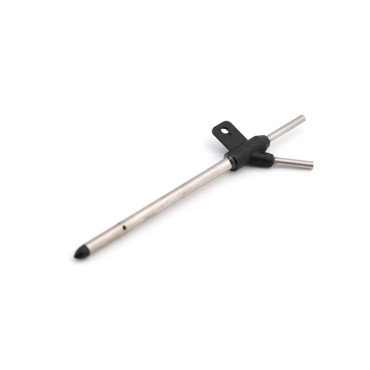

1х Pitot tube
1х Sillicone tube
1х 4 pin cable
