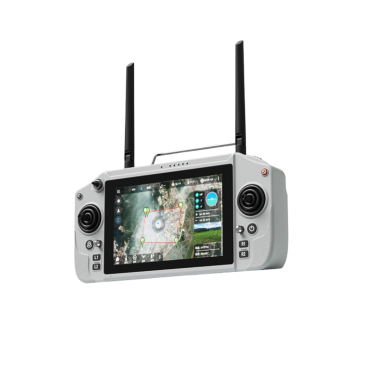

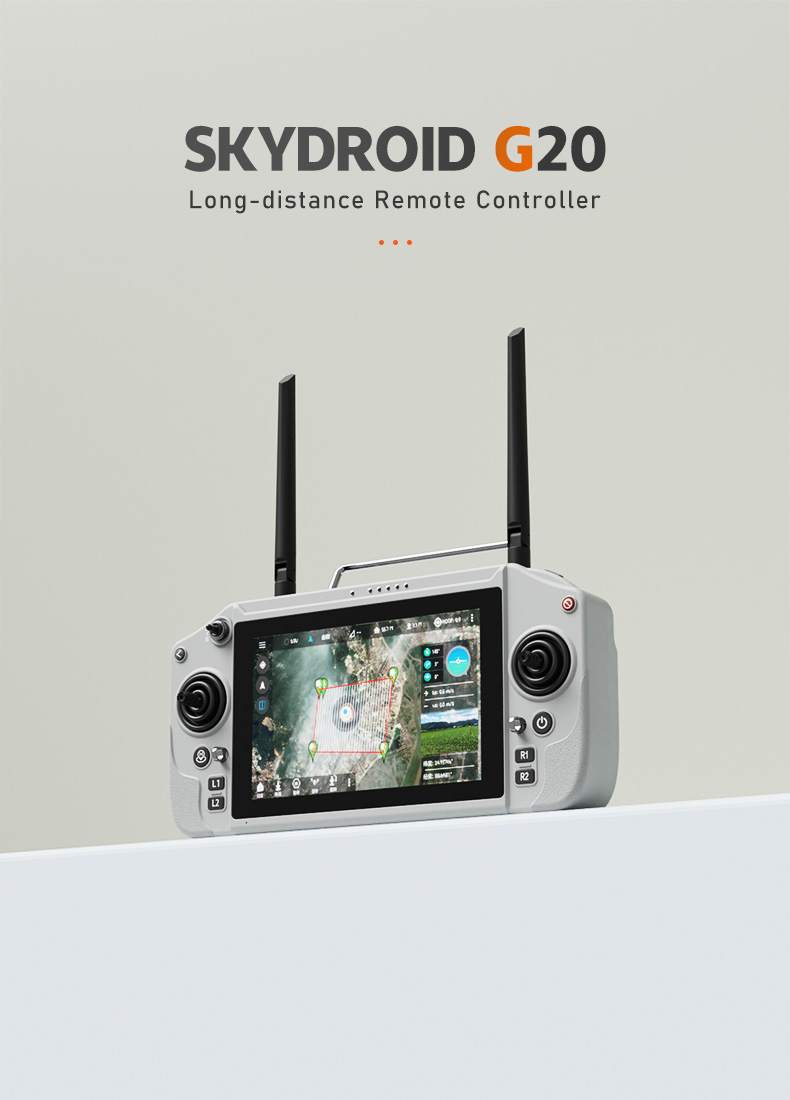

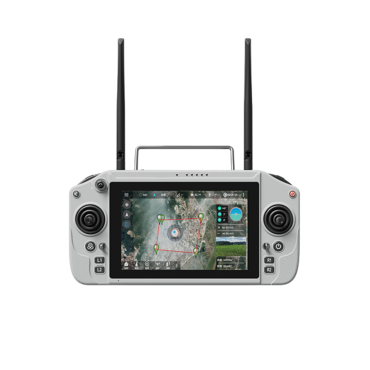

Data modem Skydroid G20 (Remote Controller + Receiver GR01)

The Skydroid G20 is a next-generation ground station built for professional drone operations that demand reliability, range, and performance. Powered by Qualcomm’s latest 6nm chip and running Android 13, it smoothly handles 4K video decoding and advanced flight software without breaking a sweat.

The G20 combines HD video, remote control, and telemetry into one rugged unit. Its upgraded wireless link supports up to 30 km of image transmission and control distance, using Skydroid’s proprietary digital link. Dual-band (2.4 GHz / 5.8 GHz) auto-switching ensures a stable connection with strong anti-interference capabilities, even in complex environments.

A built-in 20,000 mAh battery gives 8–12 hours of continuous use, and with 36W fast charging, you're back in action quickly when power runs low.

At the heart of the unit is a bright, responsive touchscreen display, and the interface is fully compatible with custom ground control apps. The G20 supports a wide range of connections, including SIM card, USB-C, Ethernet, UART, SBUS, and PWM, so you can easily integrate cameras, gimbals, and other peripherals.

Features:

- Qualcomm 6nm processor
- 7-inch high-definition and high–brightness display screen
- 30KM image transmission and control
- Long battery life with 36W PD fast charging
- Android 13 system
- Dual-band automatic switching between 2.4GHz and 5.8GHz

Specifications:

G20 Remote Control Parameters
Display: 7-inch industrial touch screen + vision viewable screen
Resolution: 1920×1200
Processor: Qualcomm 6nm processor
Computer Type: Android 13
Size: 277(L) × 138(W) × 96(H) mm
Weight: 1.2 kg
Battery: 20000 mAh
Endurance: 6–8 hours
Operating Memory (RAM): 8 GB
System Storage Memory: 128 GB
Operating Frequency Band: 2.4G / 5.8G
Channels Number: 16
Dynamic FM: Automatic frequency hopping
RF Power: 23 dBm @ CE / FCC
Remote Control Distance: 5–30 KM (ground-to-air, visual)
Operating Temperature: -10°C ~ 55°C
Charging Interface: Type-C
External Interface: USB port, SIM card slot, Type-C

GR01 Receiver Parameters
Frequency Band: 2.4G / 5.8G
Serial Baud Rate: 57600 / 115200 / 921600
Supply Voltage: 7.2–72V (XT30)
Operating Current: 12V / 300 mA
Data Transmission Port: 1 channel
Empty Port Rate: 200 Kbps ~ 160 Mbps
Network Port: 1 channel
Dimension: 45.5(L) × 60(W) × 21.5(H) mm
SBUS Output: 1 channel
Weight: 37 g
PWM Interface: 3 channels
Operating Temperature: -10°C ~ 60°C
RF Power: 23 dBm @ CE / FCC
Channel Bandwidth: 1.25 MHz / 2.5 MHz / 5 MHz / 10 MHz / 20 MHz / 40 MHz











Package includes:

1× Skydroid G20 Remote Controller
1× GR01 Receiver
2× 2.4G/5G Antennas
1x Cables set
