FPV HD Kit RunCam WiFiLink2 (Based on Open IPC) with NetworkCard

FPV HD Kit RunCam WiFiLink2 (Based on OpenIPC) is a high-definition video transmission system designed for FPV drones. Powered by OpenIPC, it offers low-latency wireless streaming, flexible configuration, and open-source support.

This version of the RunCam WiFiLink2 kit includes a dedicated USB Wi Fi NetworkCard, enabling direct HD video streaming (RTSP) to your smartphone, tablet, or PC without the need for an external receiver or HDMI adapter.

Features:
- Includes USB Network Card
Enables direct RTSP streaming to mobile devices, tablets, or PCs — no separate RX or HDMI adapter needed
- OpenIPC + Ruby FPV Support
Powered by open-source OpenIPC firmware with optional Ruby FPV compatibility
- Compact all-in-one design
Integrates camera, video transmitter (VTX), antennas, and USB adapter into a streamlined package
- High-definition video output
Supports 1080p at 60 fps or 90 fps, and 720p at 120 fps for smooth video capture
- Ultra-low latency performance
Delivers latency around ~40 ms for real-time FPV flying
- Efficient cooling & durable build
Features CNC-aluminum housing with cooling fan to maintain stable performance
- Wide voltage compatibility
Supports 9–22V input (3S–6S battery systems)
- Adjustable network settings
Choose Wi Fi channel, codec (H.264/H.265), and bitrate via PC/mobile tools like fpv4win

Specifications:
Image Sensor: SonyIMX415
Field of View (FOV): 160°
Video Resolution / Frame Rate: 1080p@60FPS / 1080p@90FPS / 720p@120FPS
Power Supply Voltage: 9–22V (max 15W)
Lens Module: 19×19mm M12, with 130mm MIPI cable
PCB Dimensions: 30.6×33mm
Mounting Hole Distance: 25.5×25.5mm
Weight: 25g (without fan) / 30g (with fan)
Antenna: 2dB gain, IPEX connector (5.8GHz)
RF Output Power: <29dBm (FCC) / <20dBm (CE)
Latency (typical): ~40ms
USB NetworkCard: Included in this version
Enables direct video streaming to PC/mobile without additional RX
Software Support: Compatible with fpv4win, PixelPilot, and RubyFPV
Connection Ports: MIPI interface for camera, USB port for power and data, RJ45 port via included breakout cable

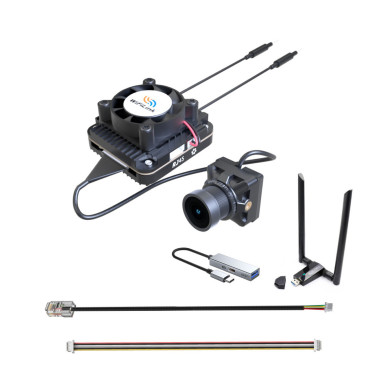

Package includes:
1 × RunCam WiFiLink 2 G (camera + VTX unit with OpenIPC)
1 × USB Network Card (Wi Fi dongle for direct streaming)
1 × RJ45 to 4pin cable
1 × Direct connector
1 × 6pin power cable
